AIR AIR INDUSTRIAL COOLER

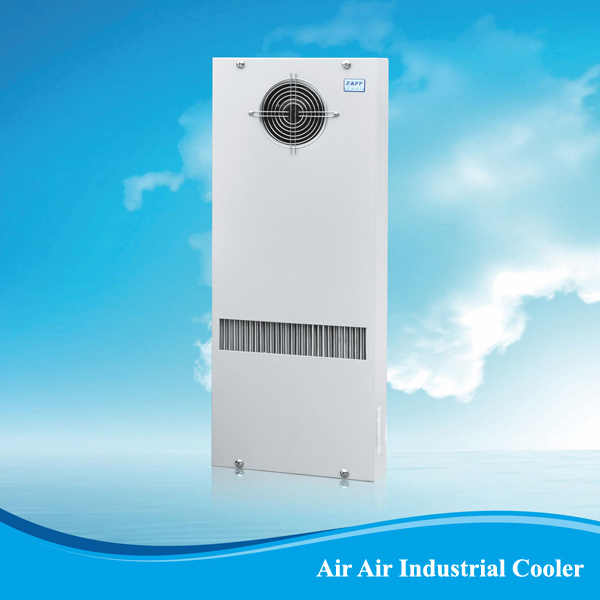

Air Air Industrial Cooler

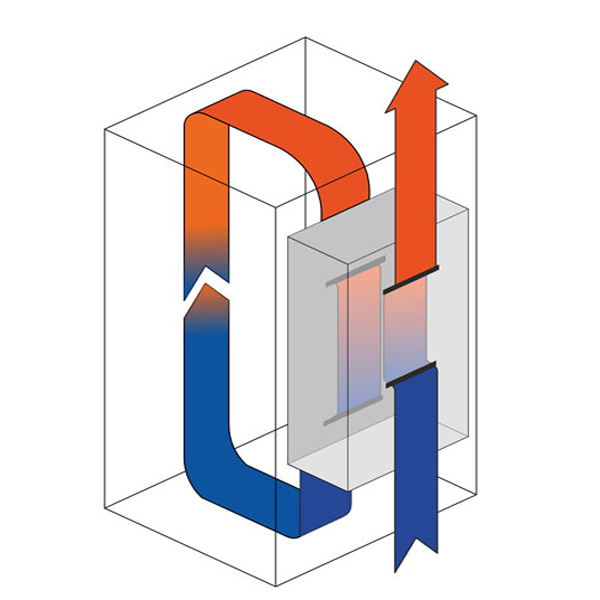

How It Works

TYPICAL USE

Low cost cooling where required temperature is higher than ambient, wind mill and telecom panels.

AAH 015 AAH 050 AAH 100 Model
15 50 100 Cooling Capacity (W/K)
1Ph/ 230V / 50Hz Operating Voltage
38 116 250 Power (W)
94 335 770 Air Flow Rate (CFM)
55 Max Temperature (oC)
6 12 25 Weight (kg)
212 315 625 Dimension W (mm)
66 95 95 Dimension
D (mm)
460 785 780 H (mm)

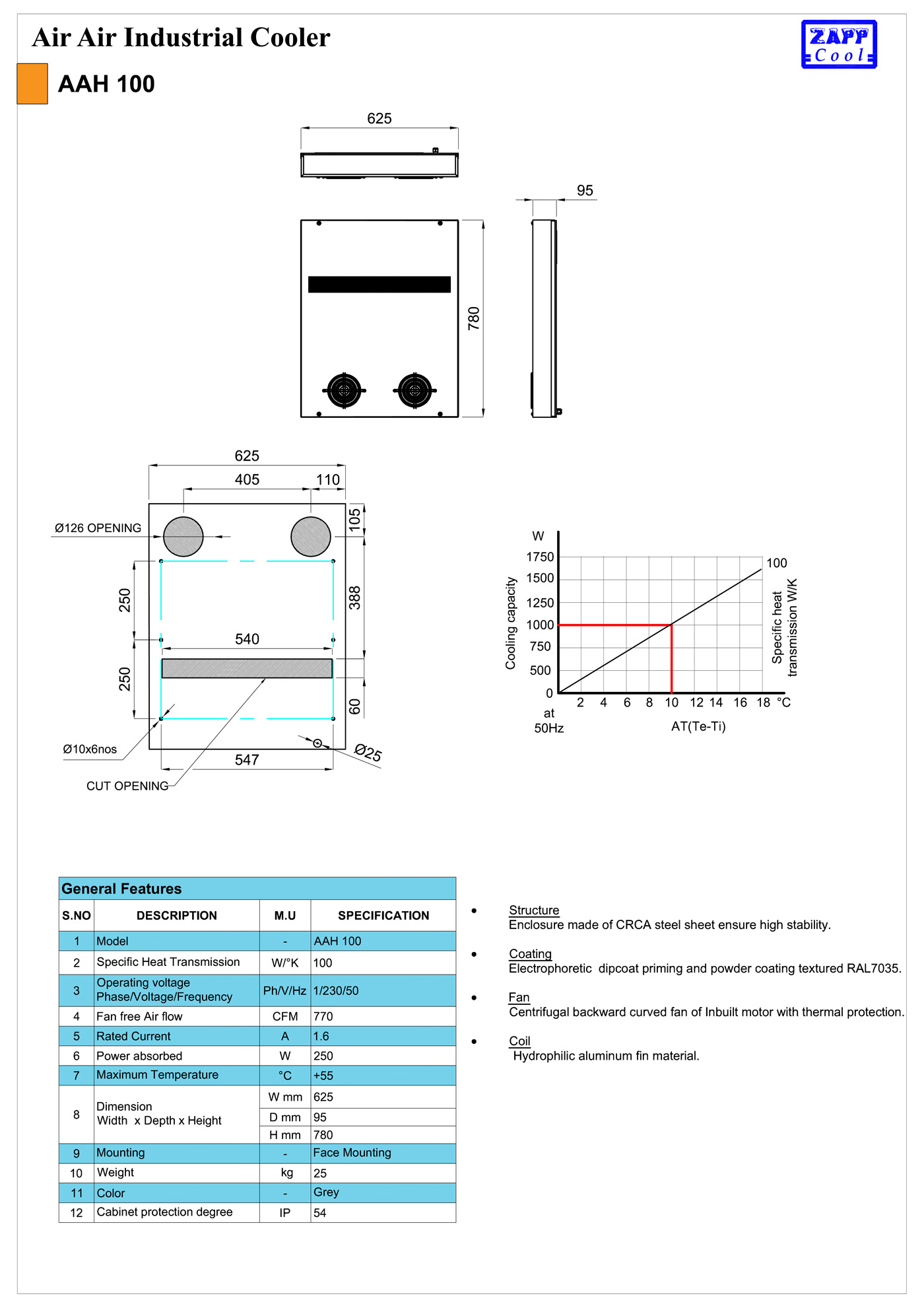

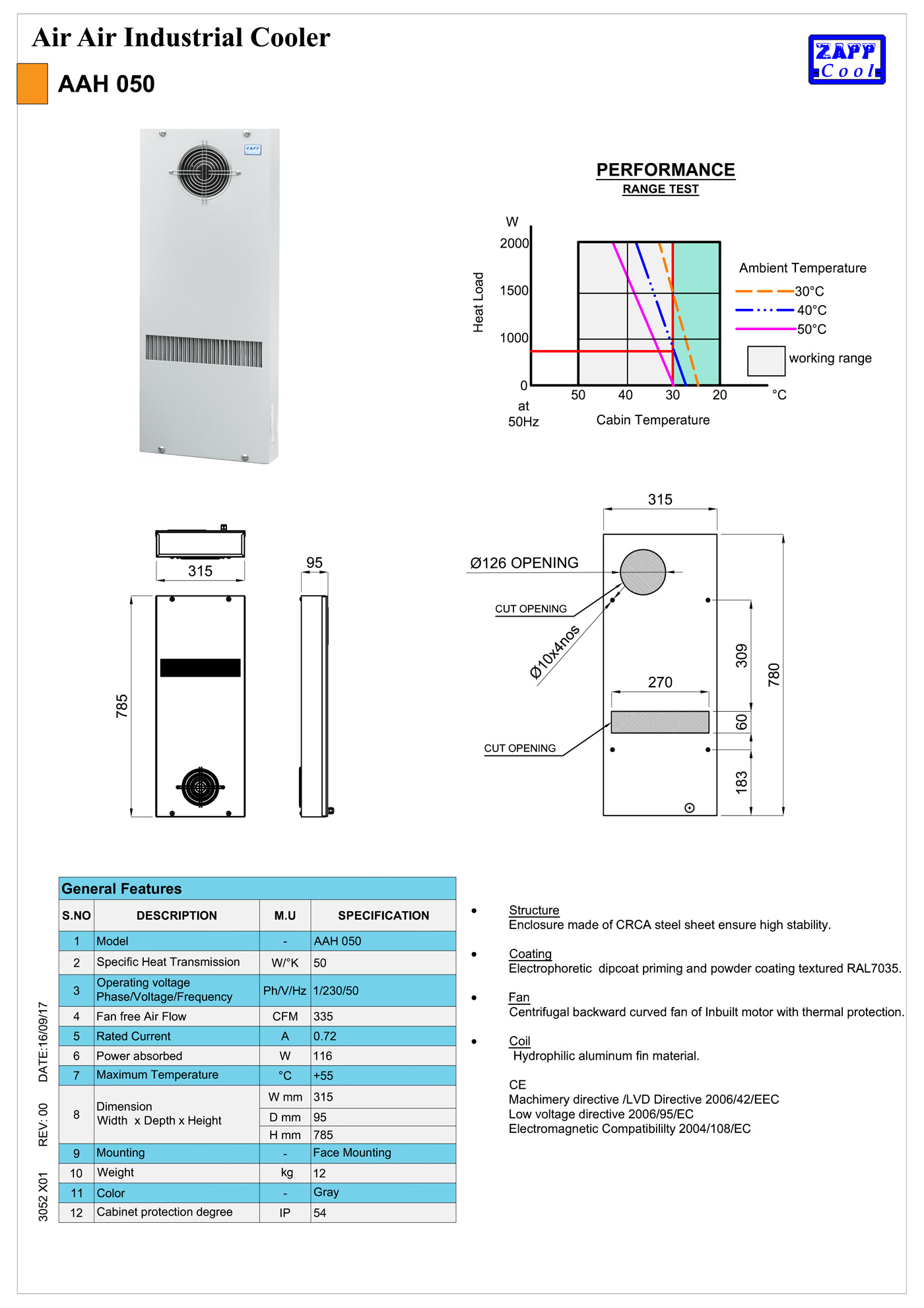

  View   View   View Datasheet

Application

  • Wind Mill Panels.
  • Telecom Panel.
  • Heavy Control Panel.
  • Metal Working.
  • Power Suppliers.
